Materials
Size |
Hub design |
Materials |
||||||||||||
AI-D |
GG-25 |
GGG-40 |
Steel |
|||||||||||
pre-bore Pre-alesage d |
d min-max |
D/D1 |
pre-bore Pre-alesage d |
d min-max |
D/D1 |
pre-bore Pre-alesage d |
d min-max |
D/D1 |
unbored non alese min-max |
D/D1 |
M:N |
|||
14AI-H |
Large hub / gros moyeu |
1a |
- |
6-16 |
30 |
|
|
|
|
|
|
|
|
|
Large hub, extended/ gros moyeu rallonge |
1b |
|
|
|
|
|
|
|||||||
19 |
Standard hub/moyeu st. |
1 |
- |
6-19 |
32 |
|
|
|
|
|
|
|
|
- |
19/24 |
Large hub/gros moyeu |
1a |
18 |
19-24 |
41 |
|
|
|
|
|
6-25 |
40 |
||
19/24 |
Large hub, extended/ gros moyeu rallonge |
1b |
|
|
|
|
|
|
|
|
||||
24 |
Standard hub/moyeu st. |
1 |
- |
9-24 |
40 |
|
|
|
|
|
|
|
|
- |
24/28 |
Large hub/gros moyeu |
1a |
20 |
22-28 |
56 |
|
|
|
|
|
8-35 |
55 |
||
24/28 |
Large hub, extended/ gros moyeu rallonge |
1b |
|
|
|
|
|
|
|
|
||||
28 |
Standard hub/moyeu st. |
1 |
- |
10-28 |
48 |
|
|
|
|
|
|
|
|
- |
28/38 |
Large hub/gros moyeu |
1a |
23 |
28-38 |
67 |
|
|
|
|
|
10-40 |
65 |
||
28/38 |
Large hub, extended/ gros moyeu rallonge |
1b |
|
|
|
|
|
|
|
|
||||
38 |
Standard hub/moyeu st. |
1 |
|
12-38 |
66 |
- |
12-38 |
66 |
|
|
|
12-48 |
70 |
27 |
38/45 |
Large hub/gros moyeu |
1a |
36 |
38-45 |
77 |
|
|
|
|
|
38-48 |
80 |
- |
|
38/45 |
Large hub, extended/ gros moyeu rallonge |
1b |
|
|
|
|
|
|
|
|
||||
42 |
Standard hub/moyeu st. |
1 |
25 |
28-42 |
75 |
- |
14-42 |
75 |
|
|
|
14-55 |
85 |
28 |
42/55 |
Large hub/gros moyeu |
1a |
42-55 |
94 |
|
|
|
|
|
42-55 |
95 |
- |
||
42/55 |
Large hub, extended/ gros moyeu rallonge |
1b |
|
|
|
|
|
|
|
|
||||
48 |
Standard hub/moyeu st. |
1 |
25 |
28-48 |
85 |
- |
15-48 |
85 |
|
|
|
15-62 |
95 |
32 |
48/60 |
Large hub/gros moyeu |
1a |
48-60 |
102 |
|
|
|
|
|
48-62 |
105 |
- |
||
48/60 |
Large hub, extended/ gros moyeu rallonge |
1b |
|
|
|
|
|
|
|
|
||||
55 |
Standard hub/moyeu st. |
1 |
|
|
|
18 |
20-55 |
98 |
|
|
|
20-74 |
110 |
32 |
55/70 |
Large hub/gros moyeu |
1a |
|
|
|
|
|
|
|
|
55-74 |
120 |
- |
|
55/70 |
Large hub, extended/ gros moyeu rallonge |
1b |
|
|
|
|
|
|
|
|
||||
65 |
Standard hub/moyeu st. |
1 |
|
|
|
20 |
22-65 |
115 |
|
|
|
22-80 |
115 |
47 |
65/75 |
Large hub/gros moyeu |
1a |
|
|
|
|
|
|
|
|
65-82 |
135 |
- |
|
65/75 |
Large hub, extended/ gros moyeu rallonge |
1b |
|
|
|
|
|
|
|
|
||||
75 |
Standard hub/moyeu st. |
1 |
|
|
|
28 |
30-75 |
135 |
|
|
|
30-95 |
135 |
53 |
75/90 |
Large hub/gros moyeu |
1a |
|
|
|
|
|
|
|
|
75-98 |
160 |
- |
|
75/90 |
Large hub, extended/ gros moyeu rallonge |
1b |
|
|
|
|
|
|
|
|
||||
90 |
Standard hub/moyeu st. |
1 |
|
|
|
38 |
40-90 |
160 |
|
|
|
40-110 |
160 |
62 |
90/100 |
Large hub/gros moyeu |
1a |
|
|
|
|
|
|
|
|
90-120 |
200 |
- |
|
90/100 |
Large hub, extended/ gros moyeu rallonge |
1b |
|
|
|
|
|
|
|
|
||||
100 |
Standard hub/moyeu st. |
1 |
|
|
|
|
|
|
45 |
50-115 |
180 |
|
|
|
110 |
Standard hub/moyeu st. |
1 |
|
|
|
|
|
|
58 |
60-125 |
200 |
|
|
|
125 |
Standard hub/moyeu st. |
1 |
|
|
|
|
|
|
58 |
60-145 |
230 |
|
|
|
140 |
Standard hub/moyeu st. |
1 |
|
|
|
|
|
|
56 |
60-160 |
255 |
|
|
|
160 |
Standard hub/moyeu st. |
1 |
|
|
|
|
|
|
78 |
80-185 |
290 |
|
|
|
180 |
Standard hub/moyeu st. |
1 |
|
|
|
|
|
|
80 |
85-200 |
235 |
|
|
|

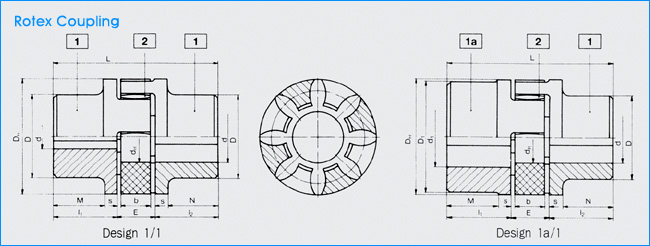

Dimensions
Size | Hub design | Dimensions | ||||||||
l1/l2 | E | s | b | L | 1) M;N | DH | dH | |||
14AI-H | Large hub / gros moyeu | 1a | 11 | 13 | 1,5 | 10 | 35 | 30 | 10 | |
Large hub, extended/ gros moyeu rallonge | 1b | 18,5 | 50 | |||||||
19 | Standard hub/moyeu st. | 1 | 25 | 16 | 2 | 12 | 66 | 20 | 40 (41) | 18 |
19/24 | Large hub/gros moyeu | 1a | ||||||||
19/24 | Large hub, extended/ gros moyeu rallonge | 1b | 37 | 90 | ||||||
24 | Standard hub/moyeu st. | 1 | 30 | 18 | 2 | 14 | 78 | 24 | 55 (56) | 27 |
24/28 | Large hub/gros moyeu | 1a | ||||||||
24/28 | Large hub, extended/ gros moyeu rallonge | 1b | 50 | 118 | ||||||
28 | Standard hub/moyeu st. | 1 | 35 | 20 | 2,5 | 15 | 90 | 28 | 65 (67) | 30 |
28/38 | Large hub/gros moyeu | 1a | ||||||||
28/38 | Large hub, extended/ gros moyeu rallonge | 1b | 60 | 140 | ||||||
38 | Standard hub/moyeu st. | 1 | 45 | 24 | 3 | 18 | 114 | 37 | 80 | 38 |
38/45 | Large hub/gros moyeu | 1a | ||||||||
38/45 | Large hub, extended/ gros moyeu rallonge | 1b | 70 | 164 | 62 | |||||
42 | Standard hub/moyeu st. | 1 | 50 | 26 | 3 | 20 | 126 | 40 | 95 | 46 |
42/55 | Large hub/gros moyeu | 1a | ||||||||
42/55 | Large hub, extended/ gros moyeu rallonge | 1b | 75 | 176 | 65 | |||||
48 | Standard hub/moyeu st. | 1 | 56 | 28 | 3,5 | 21 | 140 | 45 | 105 | 51 |
48/60 | Large hub/gros moyeu | 1a | ||||||||
48/60 | Large hub, extended/ gros moyeu rallonge | 1b | 80 | 188 | 69 | |||||
55 | Standard hub/moyeu st. | 1 | 65 | 30 | 4 | 22 | 160 | 52 | 120 | 60 |
55/70 | Large hub/gros moyeu | 1a | ||||||||
55/70 | Large hub, extended/ gros moyeu rallonge | 1b | 90 | 210 | ||||||
65 | Standard hub/moyeu st. | 1 | 75 | 35 | 4,5 | 26 | 185 | 61 | 135 | 68 |
65/75 | Large hub/gros moyeu | 1a | ||||||||
65/75 | Large hub, extended/ gros moyeu rallonge | 1b | 100 | 235 | ||||||
75 | Standard hub/moyeu st. | 1 | 85 | 40 | 5 | 30 | 210 | 69 | 160 | 80 |
75/90 | Large hub/gros moyeu | 1a | ||||||||
75/90 | Large hub, extended/ gros moyeu rallonge | 1b | 110 | 260 | ||||||
90 | Standard hub/moyeu st. | 1 | 100 | 45 | 5,5 | 34 | 245 | 81 | 200 | 100 |
90/100 | Large hub/gros moyeu | 1a | ||||||||
90/100 | Large hub, extended/ gros moyeu rallonge | 1b | 125 | 295 | ||||||
100 | Standard hub/moyeu st. | 1 | 110 | 50 | 6 | 38 | 270 | 89 | 225 | 113 |
110 | Standard hub/moyeu st. | 1 | 120 | 55 | 6,5 | 42 | 295 | 96 | 255 | 127 |
125 | Standard hub/moyeu st. | 1 | 140 | 60 | 7 | 46 | 340 | 112 | 290 | 147 |
140 | Standard hub/moyeu st. | 1 | 155 | 65 | 7,5 | 50 | 375 | 124 | 320 | 165 |
160 | Standard hub/moyeu st. | 1 | 175 | 75 | 9 | 57 | 425 | 140 | 370 | 190 |
180 | Standard hub/moyeu st. | 1 | 195 | 85 | 10,5 | 64 | 475 | 156 | 420 | 220 |
