| Model
No. |
Torque
Capacity
(kgf·m) |
Bore Dia.
Range
(mm) |
Stock Finished
Bore w/Keyway
(mm) |
Inner Race
Max.Over-
run(r.p.m) |
drag
Torque
(kg·m) |

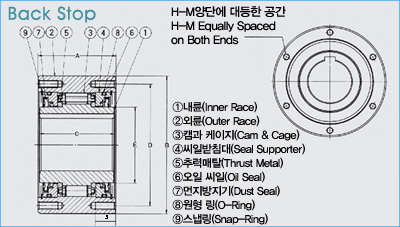

Dimensions in (mm) |
H-M |
Weight
(kg) |
| A |
B |
C |
D |
E |
S |
Tspped Holes
pcs.Xdia.Xpitch |
| BS 30 SK |
33 |
20~30 |
30 |
200 |
0.06 |
64 |
90 |
64 |
80 |
45 |
13 |
4XM6X1.0 |
2.1 |
| BS 50 SK |
85 |
30~50 |
45,50 |
200 |
0.1 |
67 |
125 |
67 |
110 |
70 |
16 |
4XM8X1.25 |
4.0 |
| BS 65 SK |
170 |
40~65 |
40,45,50,55,60,65 |
150 |
0.4 |
90 |
160 |
85 |
140 |
90 |
20 |
6XM10X1.5 |
11.5 |
| BS 75 SK |
275 |
50~75 |
60,65,70,75 |
150 |
0.6 |
90 |
170 |
85 |
150 |
100 |
20 |
6XM10X1.5 |
13.1 |
| BS 85 SK |
660 |
60~85 |
70,75,80,85 |
150 |
0.8 |
115 |
210 |
110 |
185 |
115 |
30 |
6XM12X1.75 |
24.7 |
| BS 95 SK |
880 |
70~95 |
80,85,90,95 |
150 |
1.0 |
115 |
230 |
110 |
200 |
130 |
30 |
6XM14X2.0 |
29.4 |
| BS 110 SK |
1,200 |
80~110 |
85,100,105,110 |
150 |
1.5 |
115 |
270 |
110 |
220 |
150 |
30 |
6XM16X2.0 |
34.2 |
| BS 135 SK |
1,750 |
90~135 |
- |
150 |
2.0 |
135 |
320 |
130 |
280 |
180 |
30 |
8XM16X2.0 |
68.0 |
|
|
|
